Configuring security aspects

Starting with Keyrock

Keyrock is a Generic Enabler integrated in the Tour Guide Application, aware of the user profile management, authorization and authentication among others.

For testing purposes, we have generated a set of users, organizations, apps, roles and permissions to be loaded automatically in Keyrock. To load them, we just need to run the following:

$ ./tour-guide configure keyrock

This will load all the information in Keyrock, and automatically sync with Authzforce, the Generic Enabler aware of storing the XACML policies.

Once the information is loaded, we will need to get the Oauth credentials from Keyrock and add them to the Tour Guide Application configuration by doing:

$ ./tour-guide configure oauth

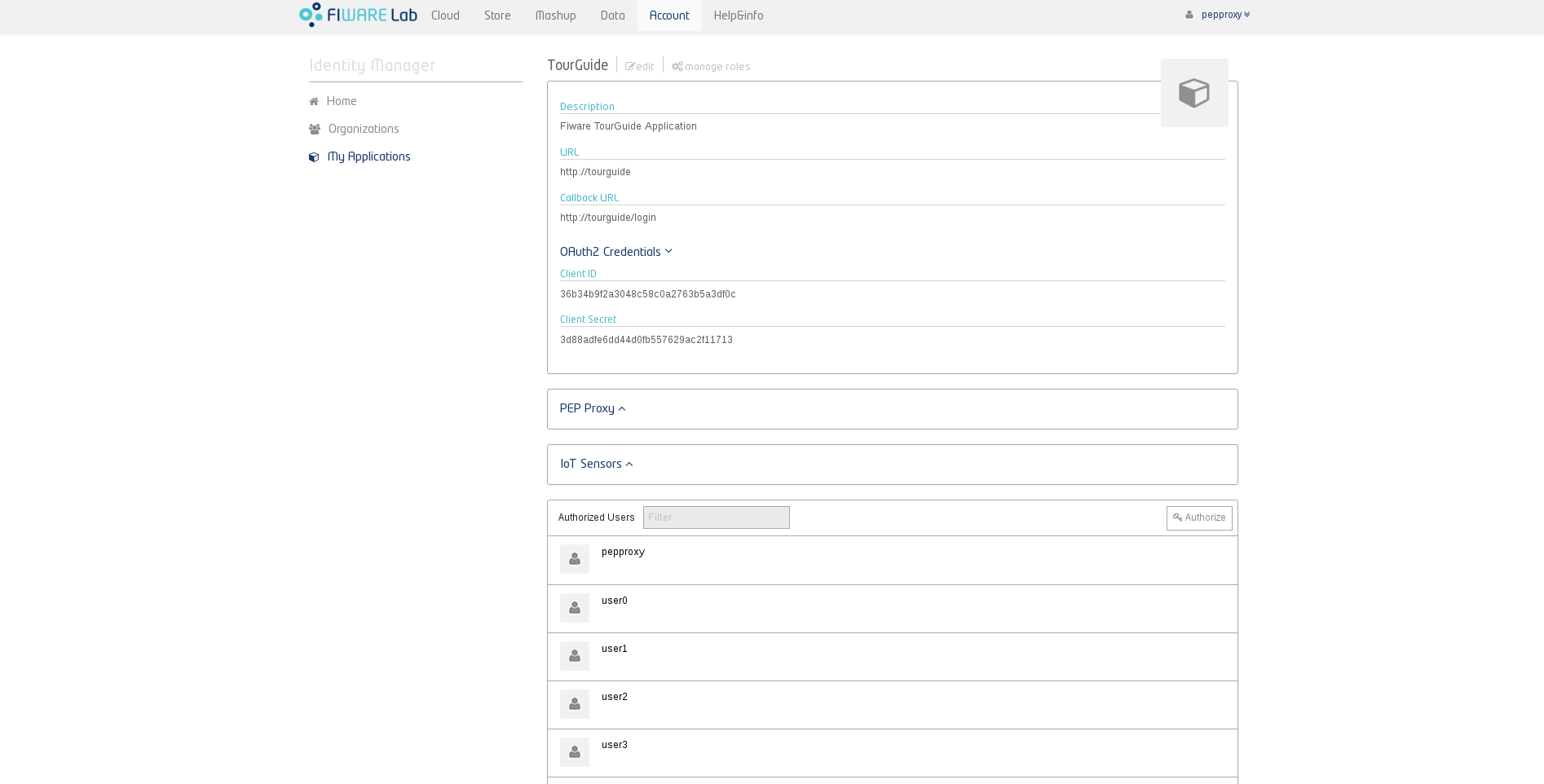

This step can be done also manually. You can go to the Keyrock interface:

http://keyrock:8000

And authenticate with a user with the application provider role (in this application example, the user pepproxy@test.com listed below). There, select the application TourGuide already registered, and you will find there the Oauth credentials (client ID and client SECRET).

Once you get them, you will need to modify the config.js file inside the tourguide container.

Probably the easiest way is accessing the container:

docker exec -it tourguide /bin/bash

And there, modify the parameters config.clientId and config.clientSecret:

vi tutorials.TourGuide-App/server/config.js

Finally, still inside the container, we should reload apache:

service apache2 reload

IdM Users, Organizations, Apps, Roles and Permissions

The file with all the information related to the set of users, organizations, apps, roles and permissions is available here.

Note: the following provision is intended just for testing purposes. Check the full Keyrock API description here.

Users

The default set of users provided is described below.

Role	Username	Password
Admin	idm	idm
Provider	pepproxy@test.com	test
Owner	user0@test.com	test
Owner	user1@test.com	test
Owner	user2@test.com	test
Owner	user3@test.com	test
Owner	user4@test.com	test
Owner	user5@test.com	test
Owner	user6@test.com	test
Owner	user7@test.com	test
Owner	user8@test.com	test
Owner	user9@test.com	test

Once generated, you can retrieve the whole list by using Keyrock SCIM 2.0 REST API:

curl -X GET -H "Content-Type: application/json" -H "X-auth-token: ADMIN" "http://keyrock:5000/v3/OS-SCIM/v2/Users/"

And you will see an output like:

{
  "totalResults": 13,
  "Resources": [
    {
      "userName": "idm",
      "urn:scim:schemas:extension:keystone:2.0": {
        "domain_id": "default"
      },
      "active": true,
      "id": "idm_user"
    },
    {
      "userName": "user0@test.com",
      "urn:scim:schemas:extension:keystone:2.0": {
        "domain_id": "default"
      },
      "active": true,
      "id": "user0"
    },
    {
      "userName": "user1@test.com",
      "urn:scim:schemas:extension:keystone:2.0": {
        "domain_id": "default"
      },
      "active": true,
      "id": "user1"
    },
    {
      "userName": "user2@test.com",
      "urn:scim:schemas:extension:keystone:2.0": {
        "domain_id": "default"
      },
      "active": true,
      "id": "user2"
    }

...

  ],
  "schemas": [
    "urn:scim:schemas:core:2.0",
    "urn:scim:schemas:extension:keystone:2.0"
  ]
}

Or generate users yourself, as explained here.

Organizations (or projects if using the Identity API)

Besides the Organizations that Keyrock automatically creates, we’ve provided four Organizations as Franchises.

Organization name	Description	Users
Franchise1	Franchise1	user0@test.com (owner)
Franchise2	Franchise2	user0@test.com (owner)
Franchise3	Franchise3	user0@test.com (owner)
Franchise4	Franchise4	user0@test.com (owner)

You can list all of the organizations using:

curl -X GET -H "Content-Type: application/json" -H "X-auth-token: ADMIN" "http://keyrock:5000/v3/OS-SCIM/v2/Organizations/"

This will display the organizations generated:

{
  "totalResults": 27,
  "Resources": [

…

    {
      "active": true,
      "urn:scim:schemas:extension:keystone:2.0": {
        "domain_id": "default"
      },
      "description": "Test Franchise1",
      "name": "Franchise1",
      "id": "f3aa9a45d1174b32a178dd281e801fd8"
    },

    ...

    {
      "active": true,
      "urn:scim:schemas:extension:keystone:2.0": {
        "domain_id": "default"
      },
      "description": "Test Franchise4",
      "name": "Franchise4",
      "id": "06a127d2a7534500bb5fb17b5d54d308"
    }
  ],
  "schemas": [
    "urn:scim:schemas:core:2.0",
    "urn:scim:schemas:extension:keystone:2.0"
  ]
}

Find here how to generate organizations.

Apps

We’ve registered a Consumer (or App) in Keyrock.

Application name	Description	URL	Redirect URI
FIWARE TourGuide	Fiware TourGuide Test Application	http://tourguide	http://tourguide/login

You can list them all by running:

curl -X GET -H "Content-Type: application/json" -H "X-auth-token: ADMIN" "http://keyrock:5000/v3/OS-OAUTH2/consumers/"

And the output:

{
  "links": {
    "self": "http://keyrock:5000/v3/OS-OAUTH2/consumers",
    "previous": null,
    "next": null
  },
  "consumers": [
    {
      "scopes": [],
      "redirect_uris": [],
      "description": "Application that acts as the IdM itself. To see the administration section of the web portal grant provider to a user in this application.",
      "links": {
        "self": "http://keyrock:5000/v3/OS-OAUTH2/consumers/idm_admin_app"
      },
      "extra": {
        "is_default": true
      },
      "is_default": true,
      "client_type": "confidential",
      "response_type": "code",
      "grant_type": "authorization_code",
      "id": "idm_admin_app",
      "name": "idm_admin_app"
    },
    {
      "scopes": [
        "all_info"
      ],
      "pep_proxy_name": "pep_proxy_7479c6d8886a4b1db211bd76fda1c1f6",
      "redirect_uris": [
        "http://tourguide/login"
      ],
      "name": "TourGuide",
      "img": "/static/dashboard/img/logos/small/app.png",
      "extra": {
        "url": "http://tourguide",
        "pep_proxy_name": "pep_proxy_7479c6d8886a4b1db211bd76fda1c1f6",
        "iot_sensors": [],
        "ac_domain": "zgUcVoWDEea5lAJCrBEABw",
        "img": "/static/dashboard/img/logos/small/app.png"
      },
      "url": "http://tourguide",
      "ac_domain": "zgUcVoWDEea5lAJCrBEABw",
      "links": {
        "self": "http://keyrock:5000/v3/OS-OAUTH2/consumers/36b34b9f2a3048c58c0a2763b5a3df0c"
      },
      "iot_sensors": [],
      "response_type": "code",
      "client_type": "confidential",
      "grant_type": "authorization_code",
      "id": "36b34b9f2a3048c58c0a2763b5a3df0c",
      "description": "Fiware TourGuide Application"
    }
  ]
}

Or generate your own as explained here

Roles

The following list shows the roles generated:

Role name	Granted to user
Provider	pepproxy@test.com
End user	All
Franchise Manager	user0@test.com (Franchise1)
Franchise Manager	user1@test.com (Franchise2)
Franchise Manager	user2@test.com (Franchise3)
Franchise Manager	user3@test.com (Franchise4)
Global Manager	user0@test.com

You can retrieve them by executing the following query:

curl -X GET -H "Content-Type: application/json" -H "X-auth-token: ADMIN" "http://keyrock:5000/v3/OS-ROLES/roles/"

Generating the following output:

{
  "links": {
    "self": "http://keyrock:5000/v3/OS-ROLES/roles",
    "previous": null,
    "next": null
  },
  "roles": [
    {
      "is_internal": true,
      "application_id": "idm_admin_app",
      "id": "provider",
      "links": {
        "self": "http://keyrock:5000/v3/OS-ROLES/roles/provider"
      },
      "name": "Provider"
    },
    {
      "is_internal": true,
      "application_id": "idm_admin_app",
      "id": "purchaser",
      "links": {
        "self": "http://keyrock:5000/v3/OS-ROLES/roles/purchaser"
      },
      "name": "Purchaser"
    },
    {
      "is_internal": false,
      "application_id": "36b34b9f2a3048c58c0a2763b5a3df0c",
      "id": "17d245ab695847f1800df8f85b360df9",
      "links": {
        "self": "http://keyrock:5000/v3/OS-ROLES/roles/17d245ab695847f1800df8f85b360df9"
      },
      "name": "End user"
    },
    {
      "is_internal": false,
      "application_id": "36b34b9f2a3048c58c0a2763b5a3df0c",
      "id": "a5b6a9daa0594f8d818e3a83da5a498e",
      "links": {
        "self": "http://keyrock:5000/v3/OS-ROLES/roles/a5b6a9daa0594f8d818e3a83da5a498e"
      },
      "name": "Franchise manager"
    },
    {
      "is_internal": false,
      "application_id": "36b34b9f2a3048c58c0a2763b5a3df0c",
      "id": "0efd09a12f074f63abe53ee943cfa6f5",
      "links": {
        "self": "http://keyrock:5000/v3/OS-ROLES/roles/0efd09a12f074f63abe53ee943cfa6f5"
      },
      "name": "Global manager"
    }
  ]
}

Or generate some as explained here.

Permissions

Permissions can be listed by doing:

curl -X GET -H "Content-Type: application/json" -H "X-auth-token: ADMIN" "http://keyrock:5000/v3/OS-ROLES/permissions/"

Getting the following output:

{
  "links": {
    "self": "http://keyrock:5000/v3/OS-ROLES/permissions",
    "previous": null,
    "next": null
  },
  "permissions": [
    {
      "xml": null,
      "resource": null,
      "name": "Manage the application",
      "links": {
        "self": "http://keyrock:5000/v3/OS-ROLES/permissions/manage-application"
      },
      "is_internal": true,
      "action": null,
      "application_id": "idm_admin_app",
      "id": "manage-application"
    },
    {
      "xml": null,
      "resource": null,
      "name": "Manage roles",
      "links": {
        "self": "http://keyrock:5000/v3/OS-ROLES/permissions/manage-roles"
      },
      "is_internal": true,
      "action": null,
      "application_id": "idm_admin_app",
      "id": "manage-roles"
    },
    {
      "xml": null,
      "resource": null,
      "name": "Get and assign all public application roles",
      "links": {
        "self": "http://keyrock:5000/v3/OS-ROLES/permissions/get-assign-public-roles"
      },
      "is_internal": true,
      "action": null,
      "application_id": "idm_admin_app",
      "id": "get-assign-public-roles"
    },
    {
      "xml": null,
      "resource": null,
      "name": "Manage Authorizations",
      "links": {
        "self": "http://keyrock:5000/v3/OS-ROLES/permissions/manage-authorizations"
      },
      "is_internal": true,
      "action": null,
      "application_id": "idm_admin_app",
      "id": "manage-authorizations"
    },
    {
      "xml": null,
      "resource": null,
      "name": "Get and assign only public owned roles",
      "links": {
        "self": "http://keyrock:5000/v3/OS-ROLES/permissions/get-assign-public-owned-roles"
      },
      "is_internal": true,
      "action": null,
      "application_id": "idm_admin_app",
      "id": "get-assign-public-owned-roles"
    },
    {
      "xml": null,
      "resource": null,
      "name": "Get and assign all internal application roles",
      "links": {
        "self": "http://keyrock:5000/v3/OS-ROLES/permissions/get-assign-internal-roles"
      },
      "is_internal": true,
      "action": null,
      "application_id": "idm_admin_app",
      "id": "get-assign-internal-roles"
    },
    {
      "xml": null,
      "resource": "NGSI10/queryContext?limit=1000&entity_type=reservation",
      "name": "reservations",
      "links": {
        "self": "http://keyrock:5000/v3/OS-ROLES/permissions/1c9af9da448a41f1ae5682930d2f59c0"
      },
      "is_internal": false,
      "action": "POST",
      "application_id": "36b34b9f2a3048c58c0a2763b5a3df0c",
      "id": "1c9af9da448a41f1ae5682930d2f59c0"
    },
    {
      "xml": null,
      "resource": "NGSI10/queryContext?limit=1000&entity_type=review",
      "name": "reviews",
      "links": {
        "self": "http://keyrock:5000/v3/OS-ROLES/permissions/7a26fd22c9ba4495802c7cf6683e4cdd"
      },
      "is_internal": false,
      "action": "POST",
      "application_id": "36b34b9f2a3048c58c0a2763b5a3df0c",
      "id": "7a26fd22c9ba4495802c7cf6683e4cdd"
    },
    {
      "xml": null,
      "resource": "NGSI10/queryContext?limit=1000&entity_type=restaurant",
      "name": "restaurants",
      "links": {
        "self": "http://keyrock:5000/v3/OS-ROLES/permissions/ea915f7a7e654536aa3c587f58ce83df"
      },
      "is_internal": false,
      "action": "POST",
      "application_id": "36b34b9f2a3048c58c0a2763b5a3df0c",
      "id": "ea915f7a7e654536aa3c587f58ce83df"
    }
  ]
}

Or you can generate them yourself as explained here.

Starting with Authzforce

Authzforce policies are generated automatically by Keyrock based on the default provision file.

By running:

$ ./tour-guide configure keyrock

Policies are generated and synchronized with Authzforce. To be able to query the Authzforce container, we will need to add the container IP to our hostfile. This can be achieved by doing (sudo required):

sudo ./tour-guide configure hosts -m

After that you will be able to query the Authzforce container to check the policies generated.

First getting the domain where the policies are stored:

curl -s --request GET http://authzforce:8080/authzforce-ce/domains | awk '/href/{print $NF}' | cut -d '"' -f2

Will give us something like:

_lczKYmCEeaNFgJCrBEACA

Secondly, retrieving the list of policies id’s stored:

curl -s --request GET http://authzforce:8080/authzforce-ce/domains/{$DOMAIN}/pap/policies | xmllint --format -

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<resources xmlns="http://authzforce.github.io/rest-api-model/xmlns/authz/5" xmlns:ns2="urn:oasis:names:tc:xacml:3.0:core:schema:wd-17" xmlns:ns3="http://authzforce.github.io/core/xmlns/pdp/3.6" xmlns:ns4="http://www.w3.org/2005/Atom" xmlns:ns5="http://authzforce.github.io/pap-dao-flat-file/xmlns/properties/3.6">
  <ns4:link rel="item" href="b0654ddd-e74a-4f4f-8f91-d81470af70a1"/>
  <ns4:link rel="item" href="root"/>
</resources>

And selecting one of the policies, we can get the versions stored of this policy:

curl -s --request GET http://authzforce:8080/authzforce-ce/domains/{$DOMAIN}/pap/policies/{$POLICY_ID} | xmllint --format -

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<resources xmlns="http://authzforce.github.io/rest-api-model/xmlns/authz/5" xmlns:ns2="urn:oasis:names:tc:xacml:3.0:core:schema:wd-17" xmlns:ns3="http://authzforce.github.io/core/xmlns/pdp/3.6" xmlns:ns4="http://www.w3.org/2005/Atom" xmlns:ns5="http://authzforce.github.io/pap-dao-flat-file/xmlns/properties/3.6">
  <ns4:link rel="item" href="1.0"/>
</resources>

Finally, choosing one of the versions, we can get the full policy set:

curl -s --request GET http://authzforce:8080/authzforce-ce/domains/{$DOMAIN}/pap/policies/{$POLICY_ID}/{$VERSION} | xmllint --format -
